PK 4200 High Performance

Palfinger Small PK 4200 High Performance

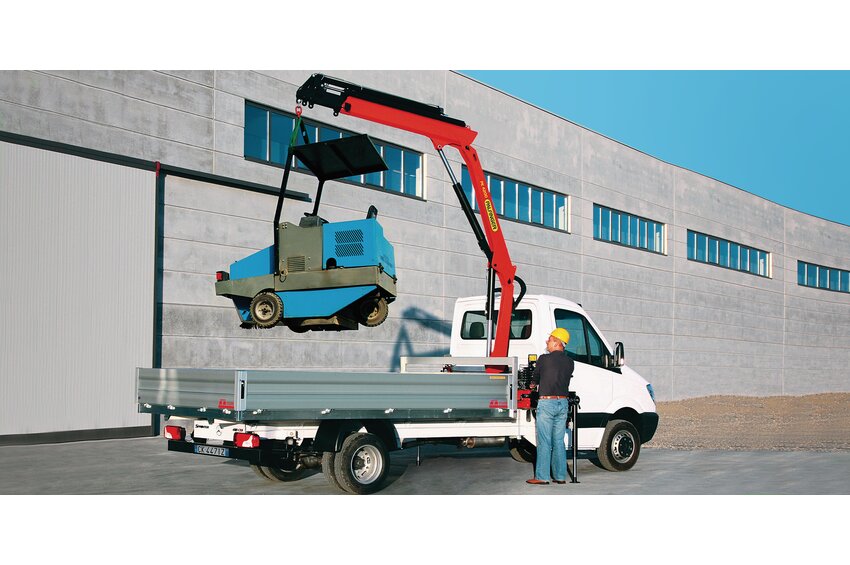

Versatile small cranes with optimised power-to-weight ratio for lightweight commercial vehicles ≥

  • High outreach with up to four hydraulic extensions
  • Optimised dead weight
  • Small overall width for use in inner city areas
  • High value retention thanks to coating technology

Technical data

Specification
Max. lifting moment3.9 mt
Max. lifting capacity990 kg
Max. hydraulic outreach9.7 m
Slewing angle370°
Slewing torque with 1 gear0.4 mt
Stabilizer spread (std)3.3 m
Fitting space required (std)0.53 m

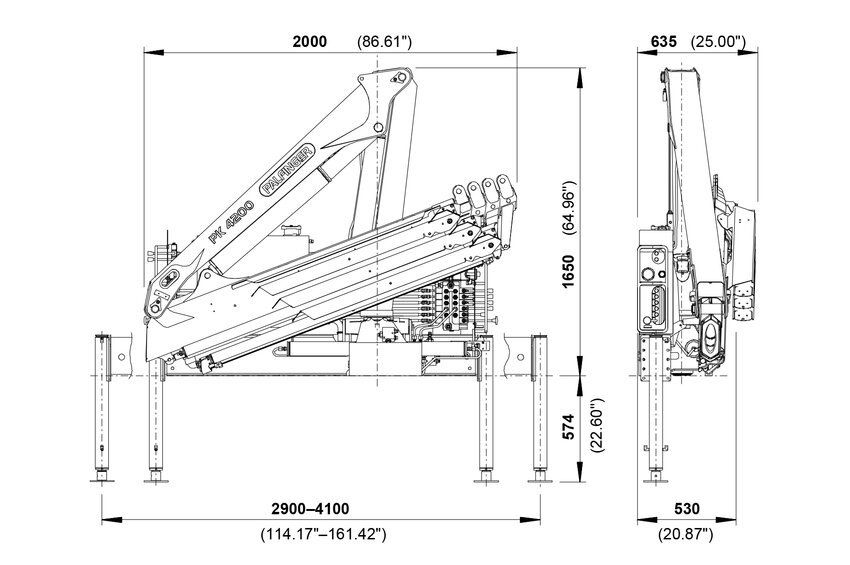

Width folded1.90 m
Max. operating pressure250 bar
Pump capacity15 l/min
Dead weight (std.)491 kg

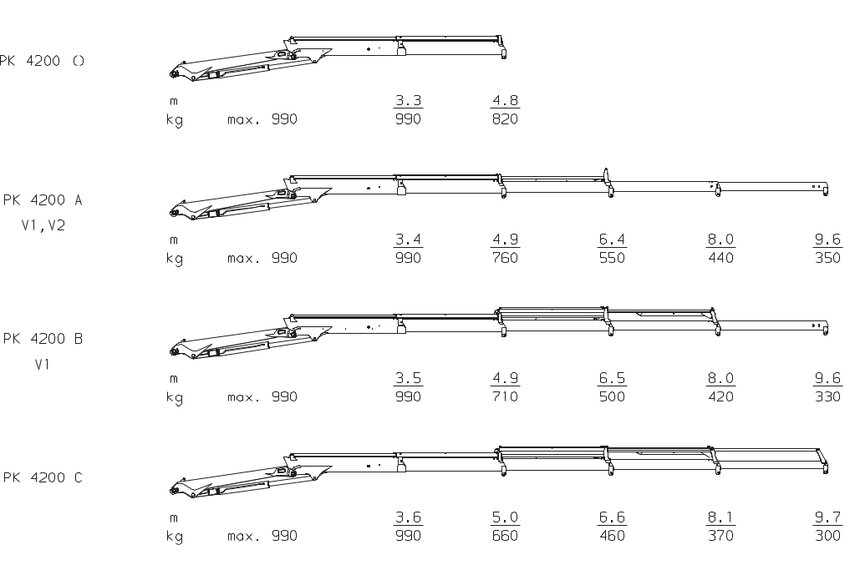

Lifting moment

Lifting momentOutreachSlewing angleSlewing torque (mt)PressurePump capacity (l/min)Crane WeightCrane HeightCrane WidthInstallation WidthMax stroke lenghtMax lifting capacityLoad vertical
mmkgmmmmmtkgmmmMpa
Std165049119005303.98204752.384.925.0-153700.4
A165054519005303.75809906355.296.525.0153700.4
B165059519155303.64209907958.28.125.0153700.4
C165063920005303.53109909561.119.825.0153700.4


Options

Cable Winch

PRODUCT FEATURES

A cable winch is the most important accessory in many cases when using a fly-jib crane. Hence the power of the winch itself determines the efficiency of the entire crane to a great extent. When designing cable winches, the greatest possible attention was paid to the lifting capacity, speed and optimum winding behaviour.

HOW IT WORKS

By using an axial piston motor, both very high starting torque under load as well as very high cable speed are achieved. The installation of the motor and brake as a unit inside the drum produces very compact dimensions.

Hose equipment for two additional hydr. functions

PRODUCT FEATURES

With the hose rig, it is very easy to connect additional attachments (fly jib, rotator,...). The hose rig is installed protected in the hose troughs.
